Non-woven slitting machine is a kind of mechanical equipment that slits wide-width non-woven fabrics, paper, mica tapes or films into multiple narrow-width materials. It is commonly used in papermaking machinery, wire and cable mica tapes, and printing and packaging machinery. The non-woven slitting machine is mainly used for slitting of non-woven fabrics, mica tapes, paper, insulating materials and films, especially for the slitting of narrow widths.
Get A Quote
about us

We Have The Best Solutions for Your Business

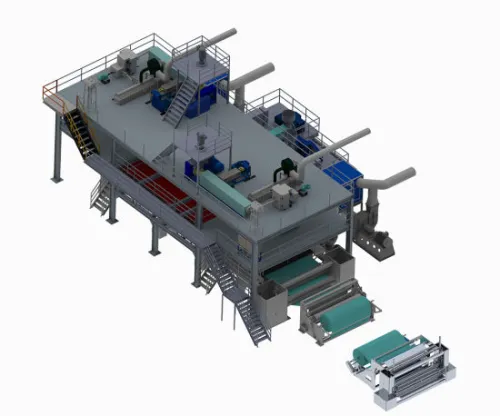

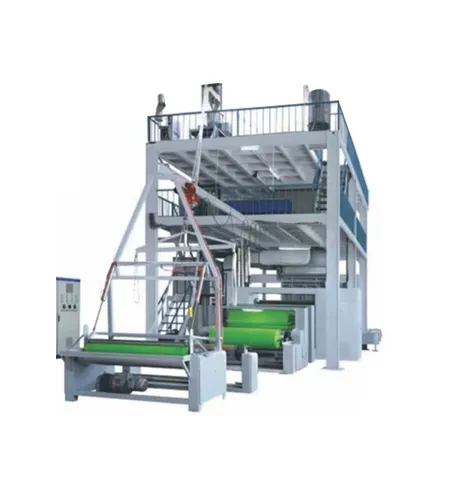

Shenzhen Baojinjia Automation Technology Co., Ltd. is an enterprise with strong R&D and design capabilities and professional production, sales and after-sales service, specializing in the production and sales of water purification equipment, sewage treatment equipment, spunbond non-woven equipment S/M /SMS/SSMMS/ and other PP spunmelt and meltblown non-woven production lines.

The company was established in 2013 and involves non-woven equipment, non-woven products, air purification materials, hygiene materials, labor protection materials, medical supplies and other fields, providing high-quality products and services to global users.

The company always adheres to customer-centricity, adheres to the business philosophy of "quality-oriented, service-oriented", adhering to the after-sales service as an important pillar in the company's pre-sale, in-sale and after-sale links, and has successfully installed various advanced technologies for domestic and foreign customers. spunbond and spunmelt nonwoven production line. Baojinjia has always won the praise of customers with professional technology and high-quality service.

Learn More

Precautions for using non-woven slitting machine

1. Check whether the number of connectors of the product is consistent with the number you have connected.
2. According to the characteristics of semi-finished products, pull one end of the film by hand and open the slitting machine at low speed to make the film go into normal.
3. Stop pressing the stop button. When unloading, the hand is not allowed to touch the take-up reel to avoid fingers being pinched.
4. Start the machine at a slow speed, observe whether the slitting film meets the quality requirements, and then slowly accelerate to start slitting. When the machine is running, it is strictly forbidden to put your hand into the slitting machine to avoid pressing the back of your hand.
5. Open the raw material bracket to a suitable width, and place the semi-finished film roll to be cut on the bracket. When feeding, the hand must leave the film roll section.
6. Return the photoelectric to the middle position to ensure that the slider of the unwinding table is kept in the proper position in the middle of the guide roller.
7. When installing the paper tube, you must hold the surface of the paper tube tightly, so as not to slip off and be injured by the shaft.
8. Lead the slitted film to the take-up reel according to the operation requirements. When the hot-melt glue machine wears the film, no blade is allowed on the machine to avoid being scratched.
9. Install the slitting knife holder to the appropriate position according to the requirements of the task list, fasten the lower knife, and then start the machine at low speed to cut the semi-finished product into the required specifications.
10. Turn on the power supply of the slitting machine, the automatic stop number of the counter and the setting of the material thickness are completed, and the photoelectricity is turned on.

Precautions for using non-woven slitting machine

Advantages of ultrasonic non-woven welding machine

Compared with traditional needle stitching, it has the following advantages:
1.Using ultrasonic welding, eliminating the need for needles and threads, saving the trouble of frequent needle and thread changing, without the broken joints of traditional thread stitching, and can also trim and seal the textiles neatly locally.
2. Using ultrasonic and special steel wheel processing, the sealed edge will not crack, will not damage the edge of the cloth, and there is no burr or curling phenomenon.
3. No preheating is required during manufacture, and it can be operated continuously.
4. It is easy to operate, and it is not much different from the traditional sewing machine operation method. Ordinary sewing workers can operate it.
5. Low cost, 5 to 6 times faster than traditional machines, and high efficiency.

Advantages of ultrasonic non-woven welding machine

What are the characteristics of non-woven slitting machine?

1. The thick steel plate is welded to form a firm and balanced angle, which makes the machine work smoothly at high speed;
2. The whole machine is made of chrome-plated steel pipes, each of which has been dynamically balanced;
3. The unwinding adopts a 3-inch inflatable unwinding shaft, and the maximum unwinding diameter can reach 600mm
4. The rewinding adopts a 3-inch inflatable reel and a magnetic powder tension controller for rewinding, the slitting operation is simple, and the maximum rewinding diameter can reach 600mm; the rewinding is beautiful and neat;
5. The cutter can use an industrial surgical blade or a flat knife (utility blade) adjustable knife between 18mm-1600mm;
6. The spindle and the circular knife use the stepless speed change system, which can be used as high and low speed and forward and reverse switching control; the electronic speed control system is convenient and simple;
7. Equipped with double-sided diamond grinding and sharpening system; the knife can be sharpened without disassembly, so that the blade can be kept sharp for a long time; the best cutting quality is achieved;
8. The imported precision ball screw and slide rail are used to advance the cutting width in parallel, and the imported AC motor adjustment system can steplessly adjust and control the cutting speed, so as to achieve high-precision cutting, and the accuracy can be controlled within 0.1 mm;
9. Equipped with a high-precision correction device system to further ensure the cutting accuracy;
10. Adopting the design of fast discharging, the loading and unloading can be completed with only one action, which can effectively reduce the labor in production and improve the production efficiency.
11. Automatic counting device, clear at a glance.

What are the characteristics of non-woven slitting machine?
Frequently Asked Question

Do you have any question?

Nonwoven fabrics are broadly defined as sheet or web structures bonded together by entangling fiber or filaments (and by perforating films) mechanically, thermally, or chemically. They are flat, porous sheets that are made directly from separate fibers or from molten plastic or plastic film.

Nonwoven fabrics are extensively used in the manufacture of both single use (or disposable) and durable clothing, notable market segments being protective clothing, garment linings, interlinings, waddings, shoe linings and synthetic leather fabrics.

Although non-woven fabric is not cloth, it can be washed if it is not too dirty, but it cannot be washed in a washing machine or rubbed hard. It can only be rubbed gently with hands and rinsed. After washing, it should be dried and blown quickly.
